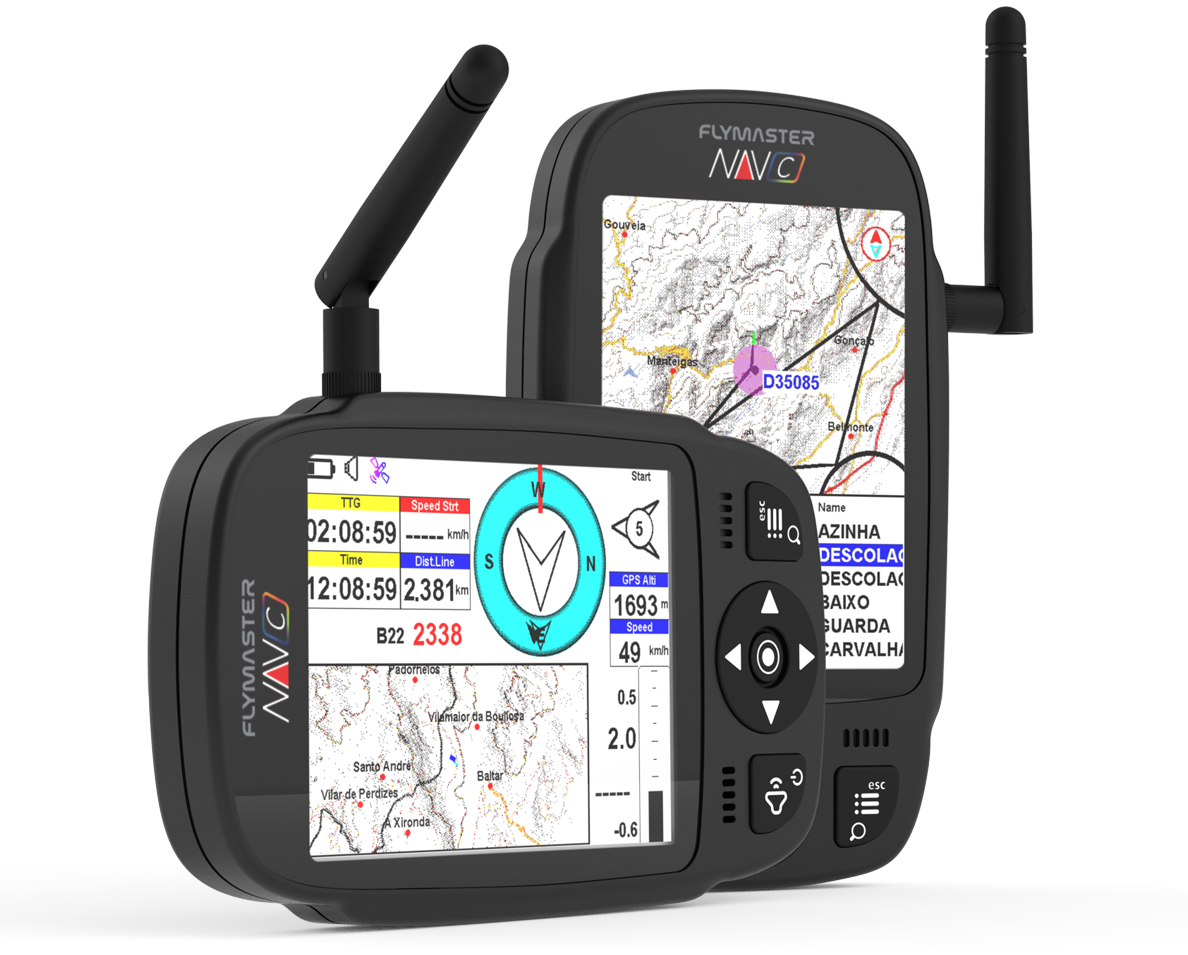

Flymaster NAV C

$670.00

FLARM

Product Details



C from color. C from competition.

Introducing the NAV C: where the DNA of the NAV SD meets the spirit of the LIVE DS, resulting in a lightweight and versatile single-display marvel. It's the ultimate fusion, offering the best of both worlds without compromising on performance. Embrace a new era of navigation excellence with the NAV C.



Main Hardware Characteristics


Display Type Reflective colour 640x480px
Battery Capacity (Lithium-Ion) 6000 mAh
Autonomy Usually more than 24 hours (environment conditions may alter this value)
Size 152x90x18 mm
Weight 200 g
GPS 72 channel U-blox BeiDou, Galileo, GLONASS, GPS / QZSS
Native USB Connection USB Type-C Mass Storage Access
Battery Charging From wall adapter or standard usb port
Bluetooth Bluetooth 5 low energy module
FlarmFlarm Flarm ready (optional Flarm Aware RX + TX mode)
Micro SD Supports SDcards up to 256 GB
6 Axis accelerometer and magnetometer Allows 6-degrees of freedom Tilt-compensated Compass)
Firmware update by USB (upgrades are free)


User definable pages (each page can be draw using Flymaster Instrument Manager, and include several elements only limited by space). 8 page sets
Configurable graphical elements (depending of the element several parameters can be set by the user ex. Size, Border, Color, ...) 15
Configurable data field elements (User can change size, border, title, Font, Color, ...) 85
Page Trigger Events (page switches automatically if a specific event occurs)
  • Airspace warning
  • Entering thermal
  • Transition (leaving thermal)
  • Arriving at turn point
  • Start opened
  • Power up
Interface language English
Configurable voice alerts
  • Airspace
  • Turn point complete
  • Start opened
  • Goal Possible
  • Distances
  • Countdown time


  • Buzzer/near thermal sound
  • Ultra sensitive Variometer with 10 readings per second and 10 cm resolution
  • Configurable vario digital filter and integration values
  • Fully configurable Vario Sound (frequency, increments, frequency/vertical speed relation,….)
  • Adjustable Sound Levels
  • Automatic mute, keeps vario silent until takeoff
  • Altitude adjustment using QNH
  • Automatic altitude adjustment from GPS
  • 2 independent altimeters


  • 3D flight logger IGC format


  • The map offers an intuitive visualization of restricted areas, ensuring easy identification and awareness of prohibited zones.
  • Adjustable voice warning of vertical distance to a restricted area
  • Adjustable voice warning of horizontal distance to a restricted area
  • Display of shortest vertical, and horizontal distance to restricted area
  • Restricted area voice alarms (Altitude imminent, Position imminent, Violation, …)
  • Critical Airspace page (displays information about areas that are closer than a defined distance)
  • Airspaces browser
  • Worldwide Airspace database


  • Detailed colored maps with topographic data
  • With configurable layers


  • Exclusive Thermal Ball indicator
  • Several specific data fields like distance to take off, current and average glide ratio, average speed, etc.
  • Distance to last thermal indexed with altitude
  • Goto waypoint
  • Multiple waypoint route
  • Wind Speed and Direction (GPS based calculations)
  • Automatic altitude gain profiler
  • Nearby Landings (displays required glide ratio and distance to all the landings which can be reached)


  • Route Optimization (indication for shortest route point)
  • Speed to Start (optimal speed to make the start)
  • Arriving altitude at next waypoint and goal (considering wind)
  • Several Glide Ratios (to goal, average, to next,…)
  • Easy task definition
  • Task Navigation, configurable safety/risk margin on turn points.
  • Task Map (trace with thermal indication)


Compatible with MacOS (10.13 and higher), Windows (7/8/10)
